Integrations: Number Configuration

Integrations: Number Configuration

Number configuration has to be configured in AVANSER Customer Portal.

Each tracking number can be configured for various integrations including Universal Analytics, Google Analytics 4, Microsoft Ads.

In order to access the Integrations, click on the cog wheel on the left sidebar and open the "Integrations" menu.
Then click on "Number Configuration" to access an overview of the numbers configured in your system and the integrations enabled for it.



You can select the numbers by clicking on their checkbox and perform bulk operations from this view.
Each Integration screen is rich with information that explains the requirements and where to find them.
You can also configure multiple integrations of the same type.
There is no limits on the integrations you can configure for each number. Configure as many integrations as you need.  You can configure AdWords, Google Analytics and Salesforce at the same time.
Each number can be associated with only one Integration Account per type.
For example: You can configure two Integration Accounts for Google Analytics 4 but you can only use one integration at the time.
Only two steps are required to configure an integration:
  1. Create an Integration Account configuration for the desired 3rd Party service.
  2. Associate your numbers to the Integration Account.
The following steps will be the same for all integrations, and we will use a Google Analytics 4 integration as an example.

Step 1: Creating an Integration Account

Navigate to the Integration menu and select "Google Analytics 4" tab.


You will be prompted to create a new account if you don’t already have an account.



With Google Analytics 4, the Event Name specifies the name of the event that will be received for each event sent.

The “help” section at the top and the contextual tips will help you with the integration.

Follow the steps described for each parameter required and click the ”SAVE” button.
You have created a new Integration Account.



Once you configure an integration account, you can edit, pause it or delete it. By doing so, all associated numbers will be updated as well.

A note about Google Analytics 4

The following are parameters available to Google Analytics 4 integration.
Other integrations will have different data sets that depend on the type of data we are allowed to send with each event.
For example in Universal Analytics and Google Analytics 4, sending the caller number of each call would violate their security and privacy policies.

Event PropertyDescription
Call_ID
Call Unique Identifier
Call_Client
Client Identifier
Call_Date
Call Date and Time
Call_Tracking_Service
Tracking Number - Ad Source
Call_Tracking_Name
Friendly name associated with the Tracking Number
Call_AnswerPoint
Number the call was diverted to.
Call_AnswerPoint_Name
Friendly name associated with the Answer Point as configured.
Call_Duration
Call duration in seconds
Call_Status
Call status, answered, abandoned, missed, etc.
Call_Audio
Recording or Voicemail, only reports if they are present, does not provide the audio url.
Call_ARTIC
Yes or No, Yes if the call was handled by the ARTIC Call Queueing system.
Call_Web_Medium
Visitor medium detected by Dynamic Numbers
Call_Web_Source
Visitor source detected by Dynamic Numbers
Call_Web_Campaign
Visitor campaign detected by Dynamic Numbers
Call_Web_Keywords
Visitor keywords detected by Dynamic Numbers

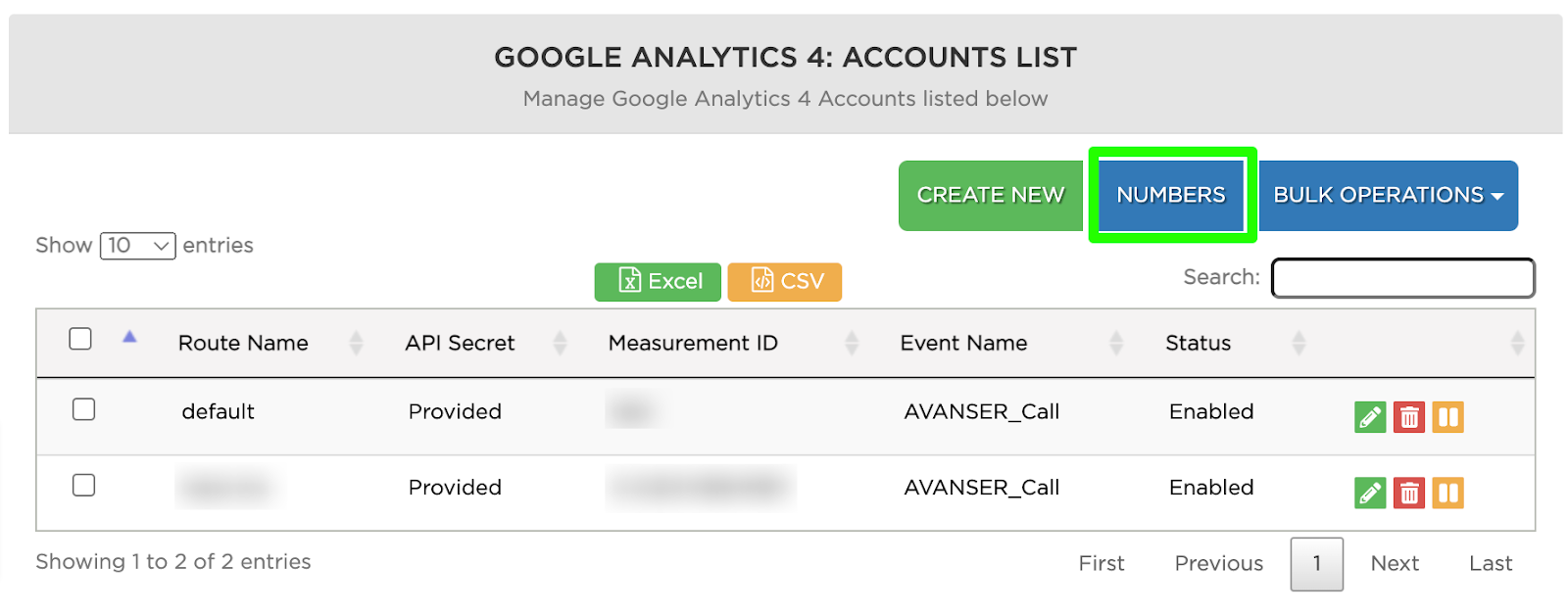

The next steps are performed from the Number Configuration View, but they can also be performed from the individual Integration Page by clicking on the Numbers button when you have configured the Integration Account.

Step 2: Configuring Numbers for an Integration

This section will guide you through setting up your numbers for reporting with the newly created Integration Account.

Navigate to the Number Configuration view by clicking on the "Number Configuration" submenu under the "Integrations" menu.

1. Select the numbers you want to configure

Use the search bar and tick the check box to select the numbers you want to perform a bulk operation.


Other bulk operations you can perform include:
  1. Enabling and Disabling integration configurations.
  2. Deleting integration configurations.

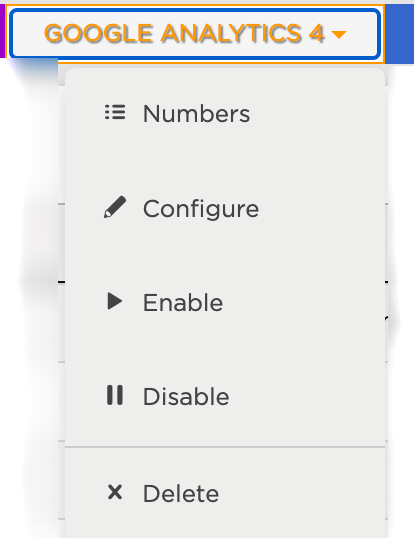

2. Click on the desired integration button

All integrations are designed to offer a familiar interface and they all provide the same functionalities.


3. Click on the "Configure" menu option

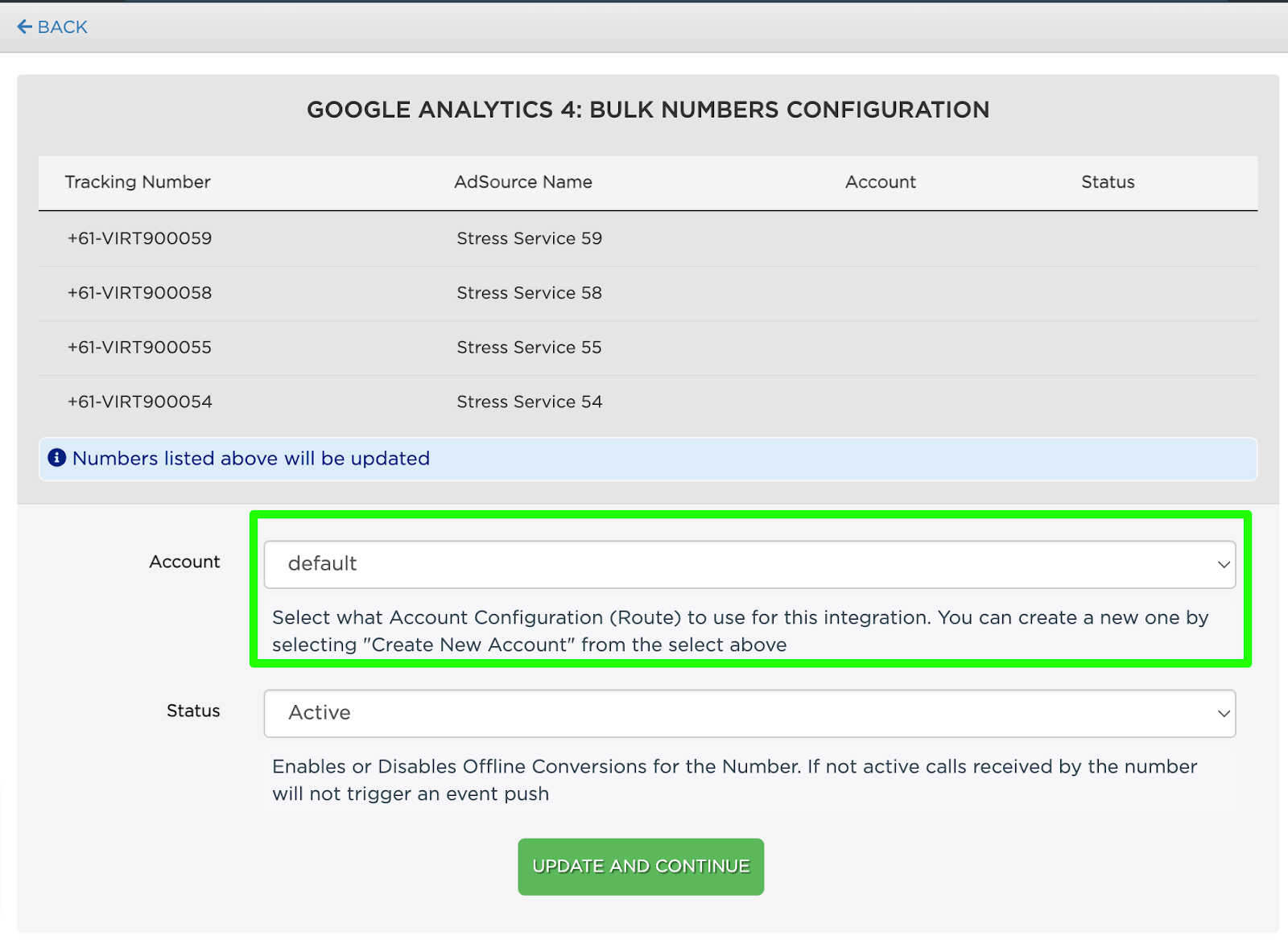

Select the Account you want to use for the integration.   We have chosen the account "default" in our example.


If none of the accounts listed is the one you need, you can create a new account by selecting "Create New Account" in the Account drop down.

Click the "Update and Continue" button to save the changes to the services.  The integration is now configured.

You can make some test calls or wait for calls to land on your numbers. Call events will be sent to the reporting platform automatically.

Step 3: Verifying Your Integration Configurations

  1. In the Account Page
    1. Verify the Account is ACTIVE.
    2. Validate the Integration Account Options.
  2. In the Numbers Page
    1. Verify the Numbers are associated with the right account.
    2. Verify the Number configuration is ACTIVE.
  3. Perform test calls.
    1. If you are reporting to Google Analytics you may require to use one of the test urls available in Dynamic Numbers Tracking Configuration page.
    2. Check that events are received at least once on the 3rd Reporting Platform.
